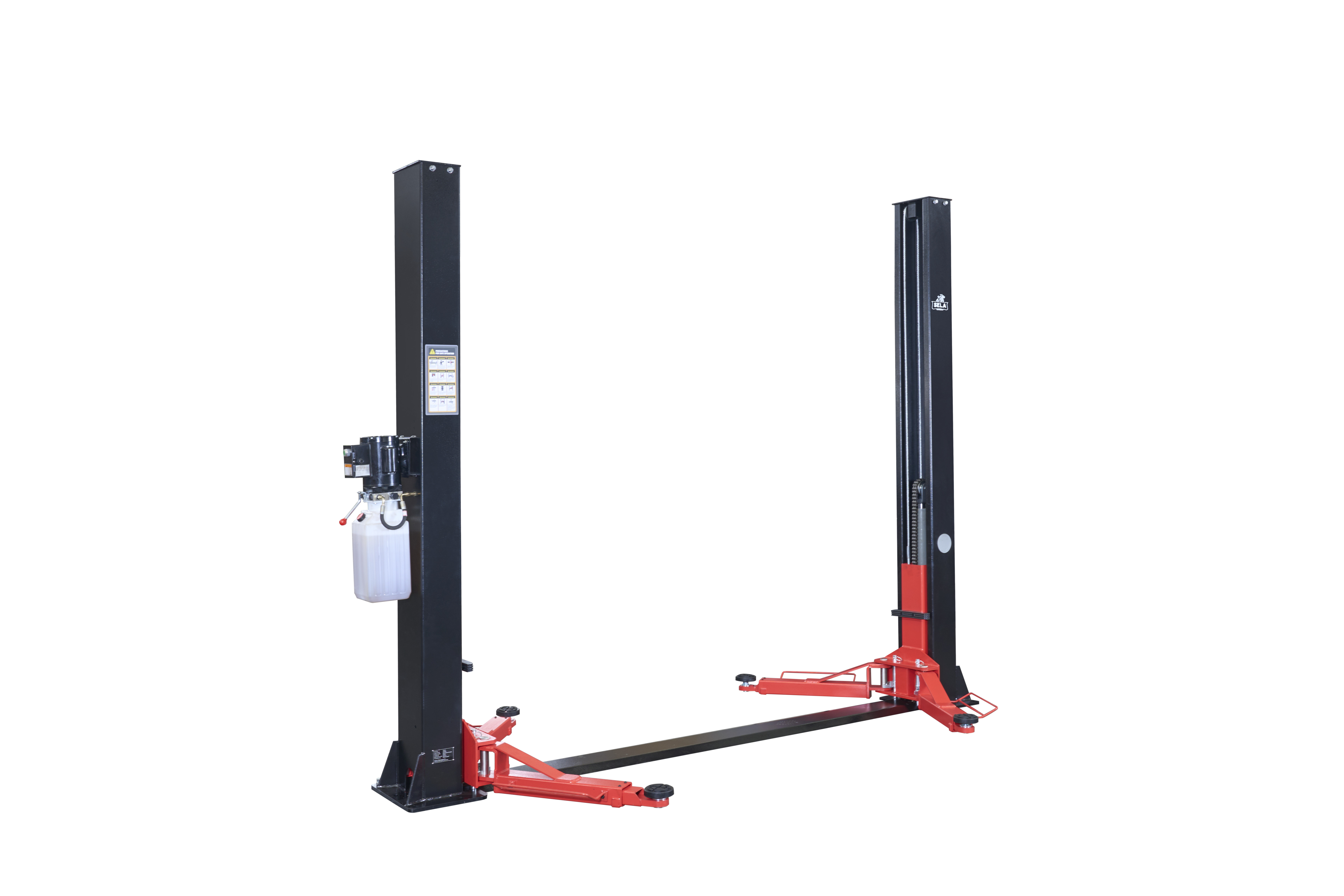

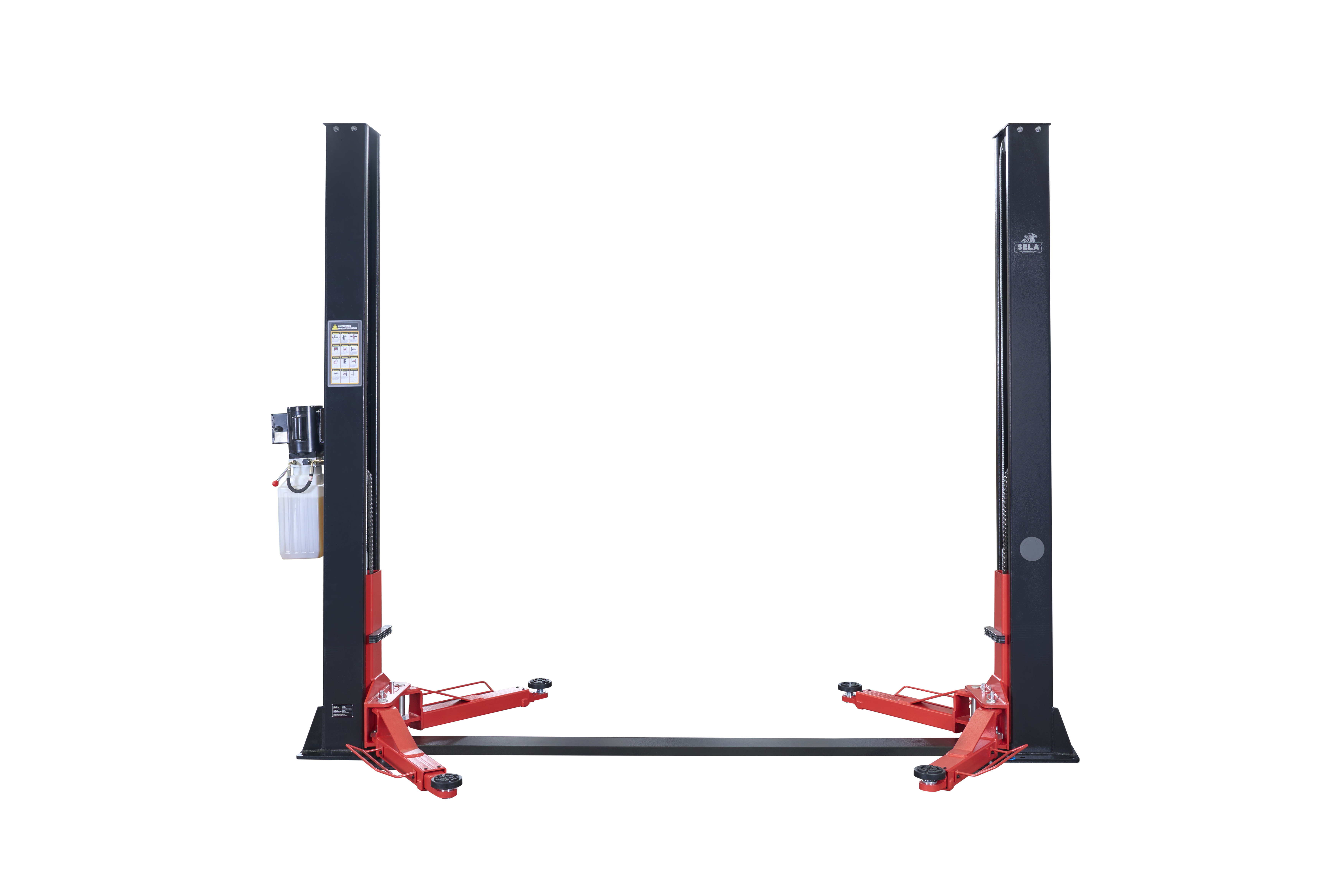

FEATURES

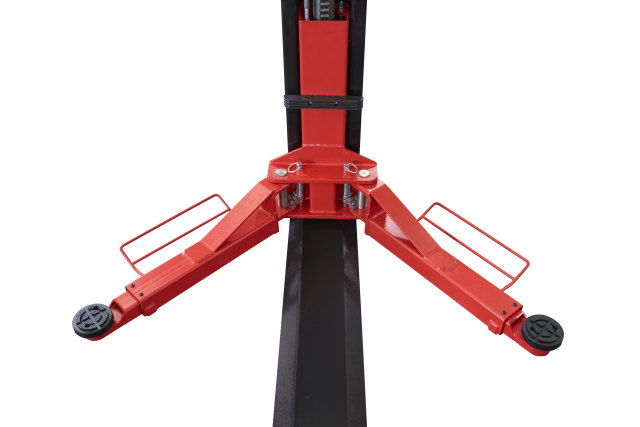

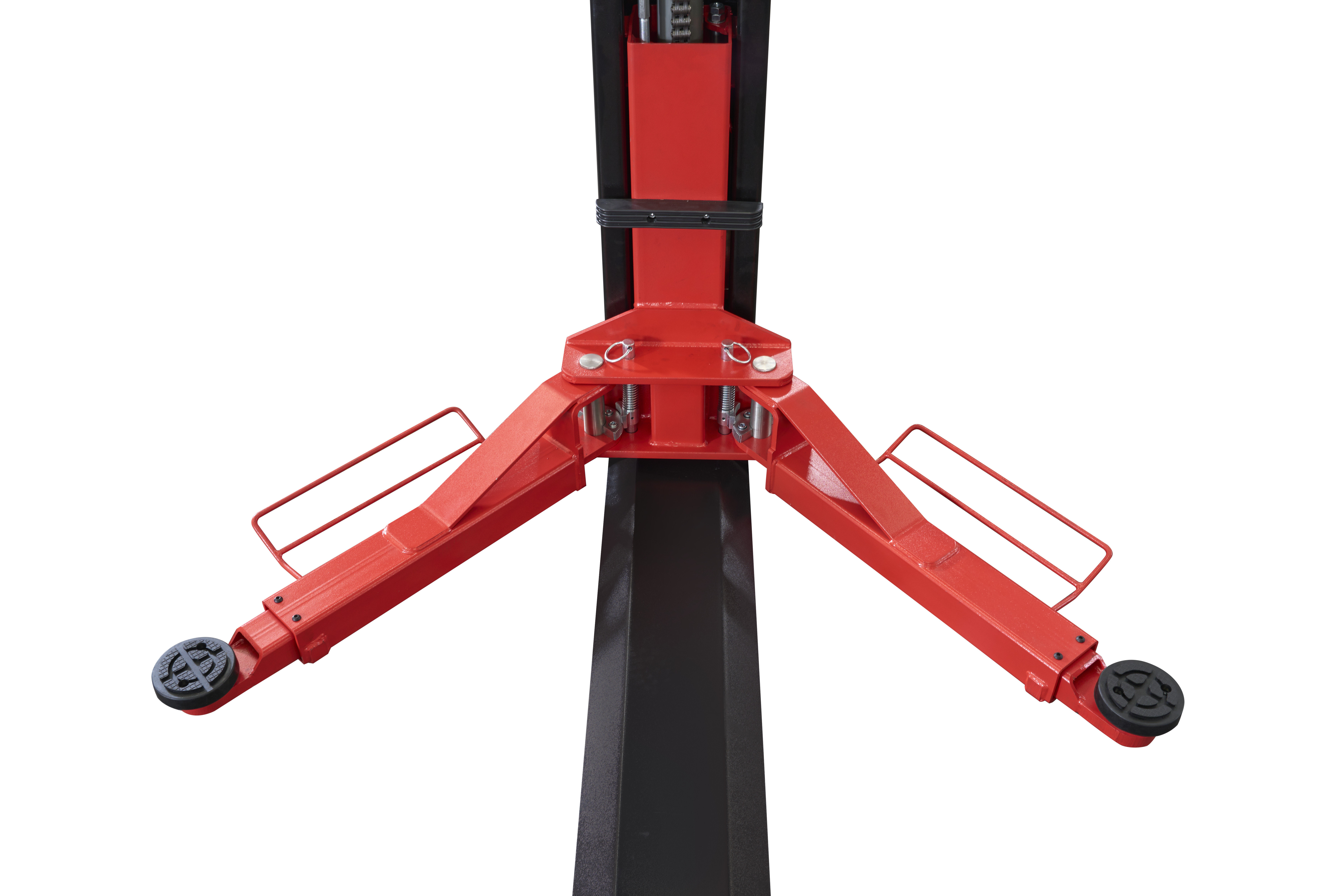

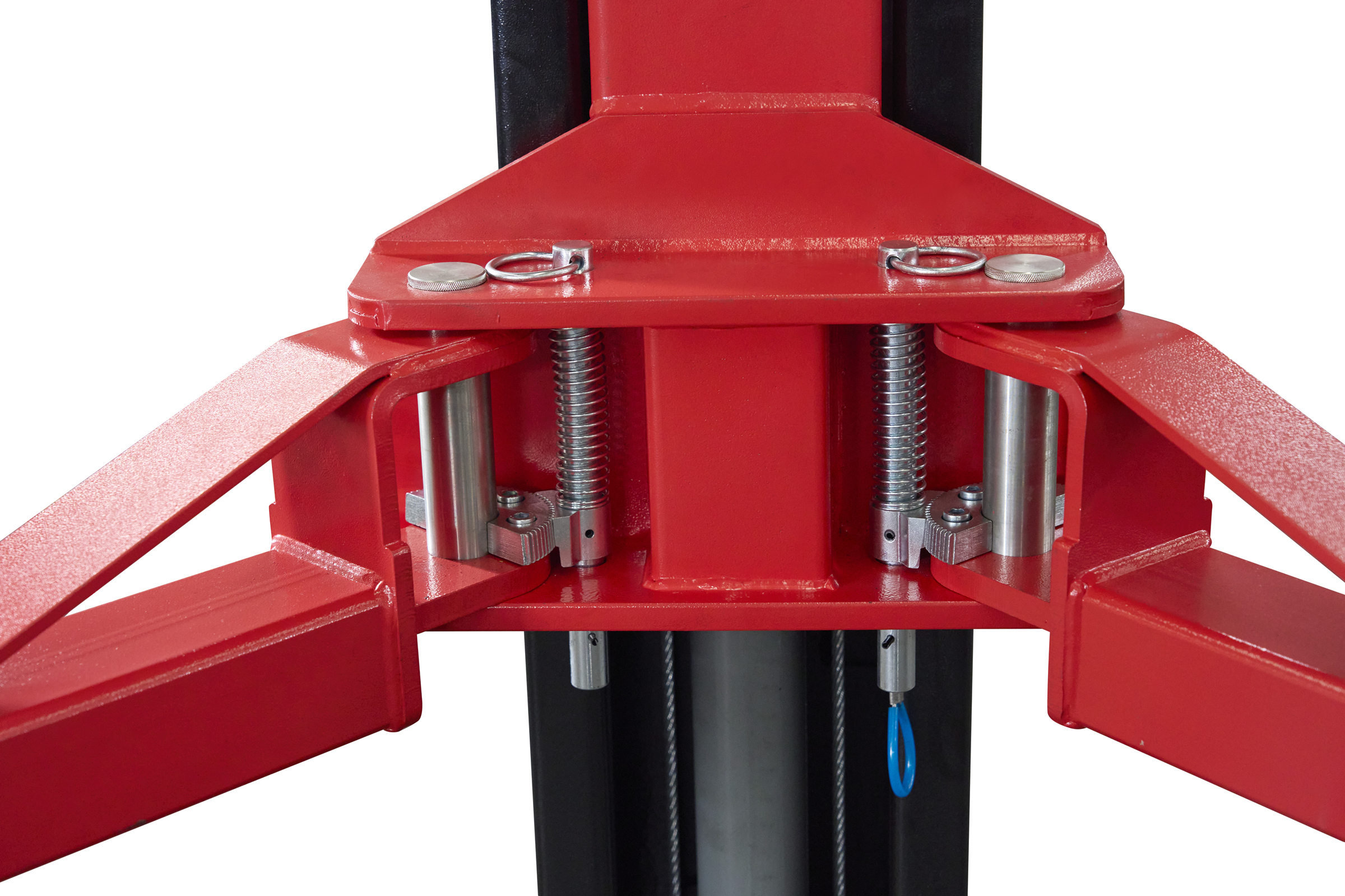

- Automatic arm restraints, lifting arm automatically engages when lift raised and disengaged when lift lowered to the ground

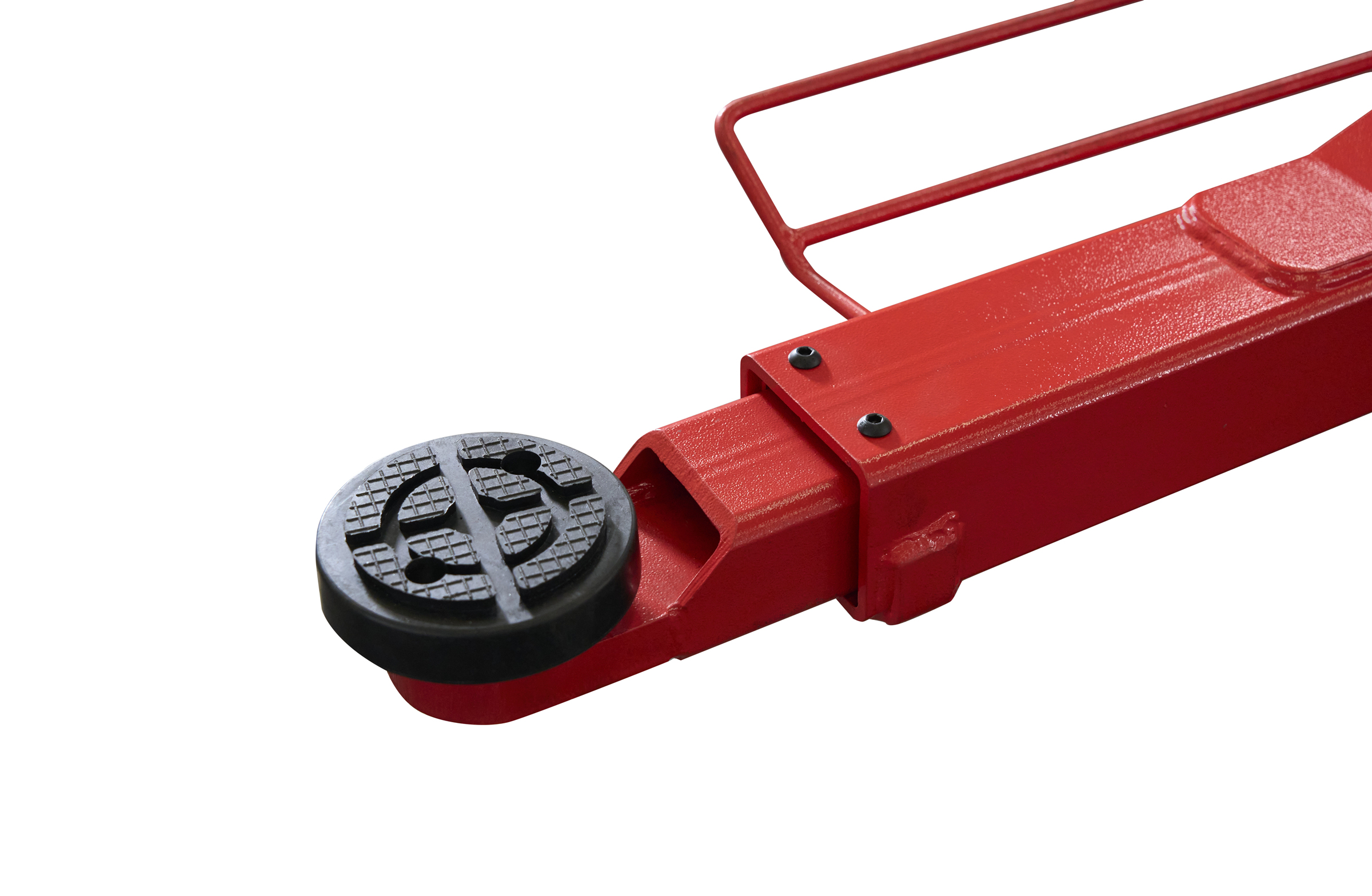

- 2-stage Screw-up pads suitable for low chassis vehicle and make easy and quick service
- Parachute value that equipped in hydraulic joint ensures safety in case of oil hose broken

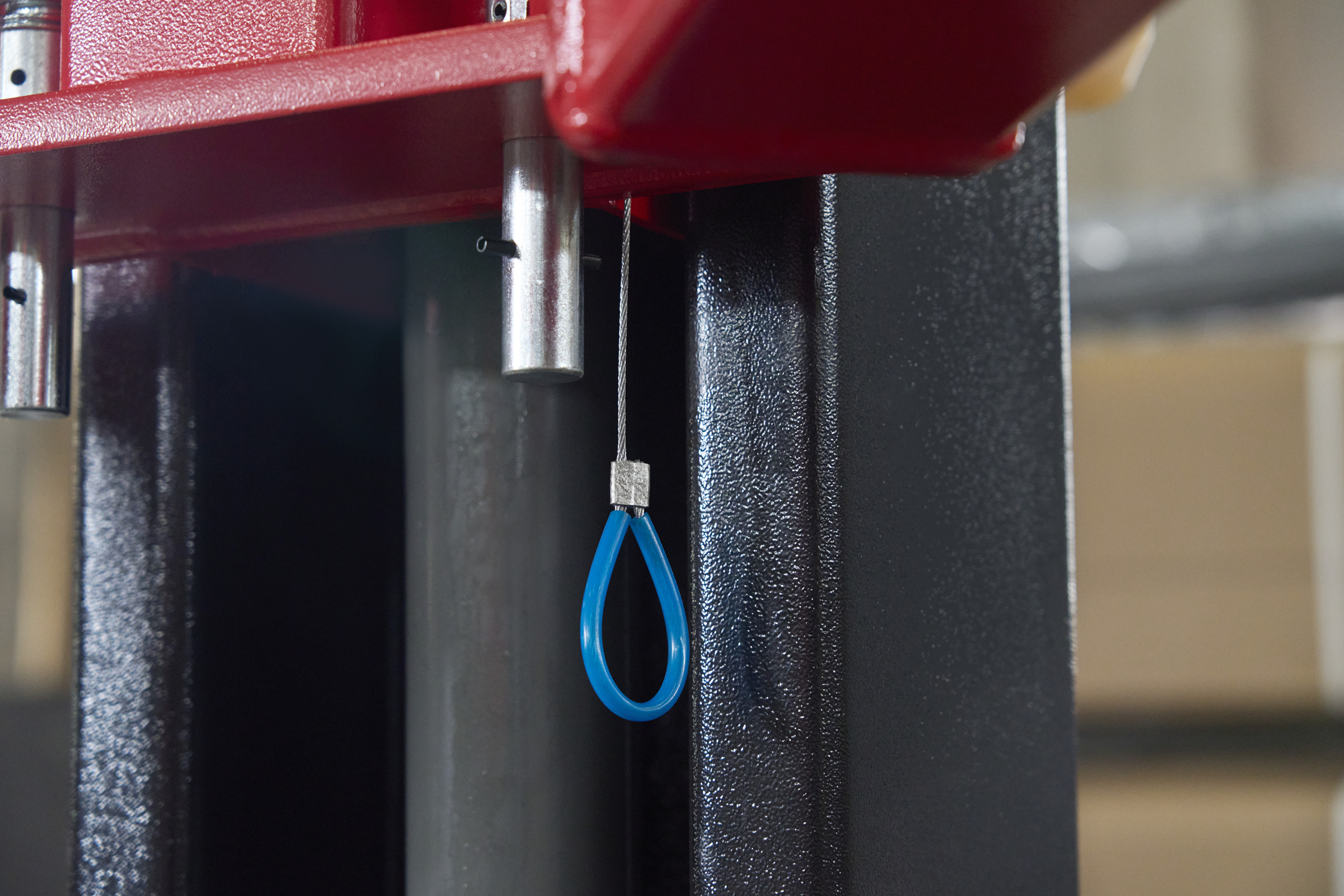

- Manual lock release from two sides

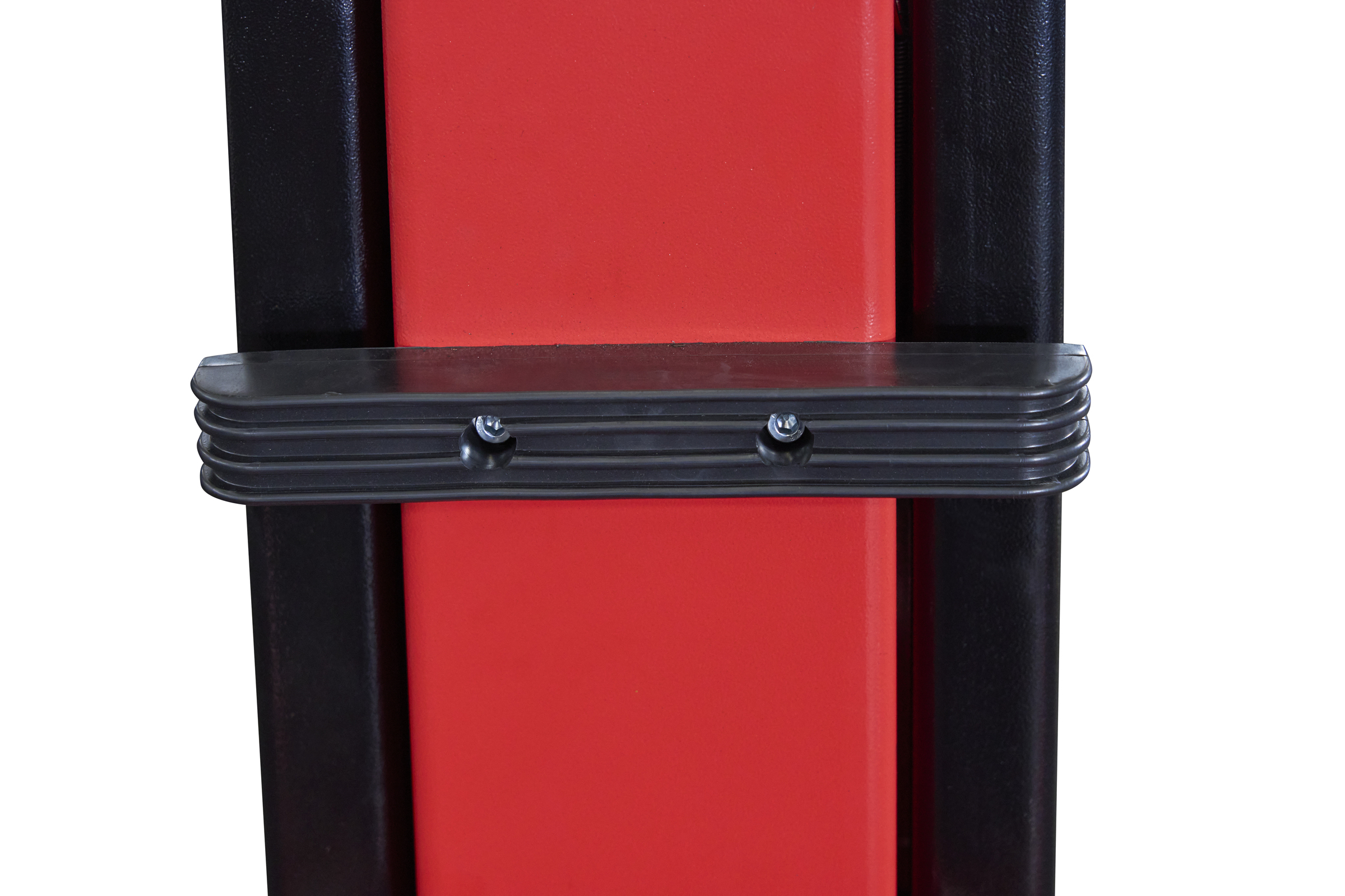

- Door opening protection rubber as standard

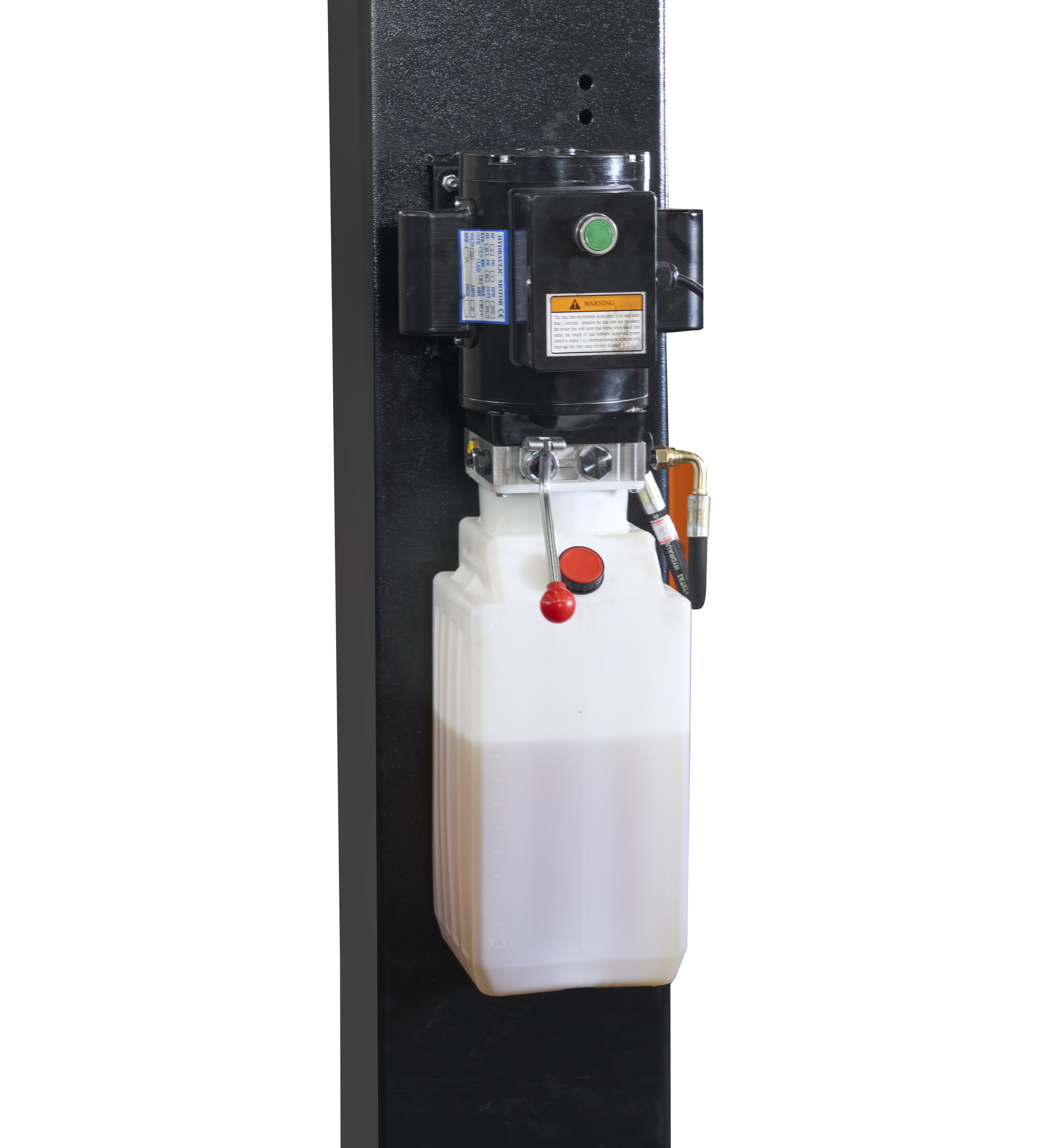

- ETL certified for hydraulic pump power unit
SPECIFICATIONS
- Lifting Capacity: 10,000lbs
- Lifting Height: 74-4/5”
- Minimum Pad Height: 4”
- Overall Width: 133”

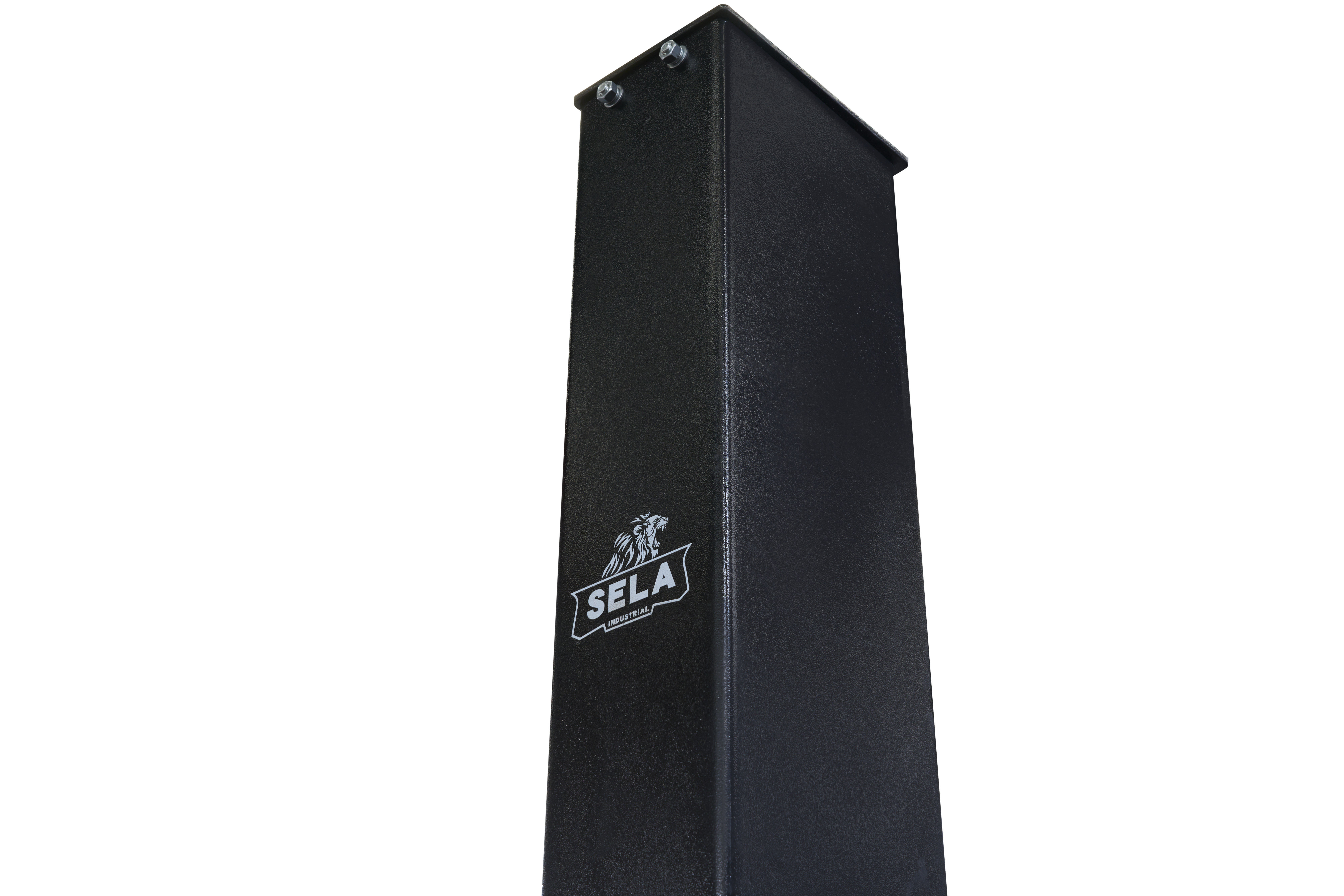

- Height Of Post: 111-1/5”
- Drive Through Width: 101”
- Retractable Front Arm: 29” to 44”-
- Retractable Rear Arm: 30-1/2" to 47-1/4"
- Power Supply: 220V, 60Hz, 1PH
PACKING DETAILS
- Size A: L116”×W18”×H30”
- Size B: L30”×W10”×H14” (Power Unit)
- Weight: 1300 lbs
